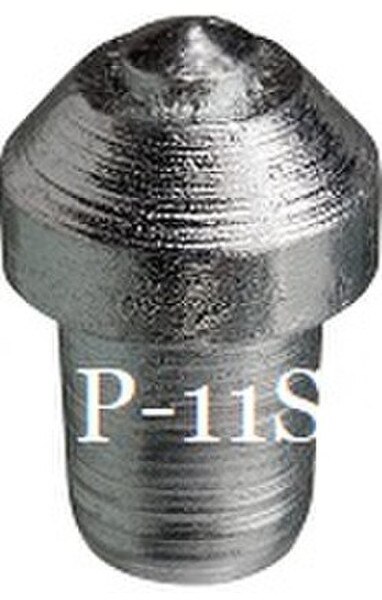

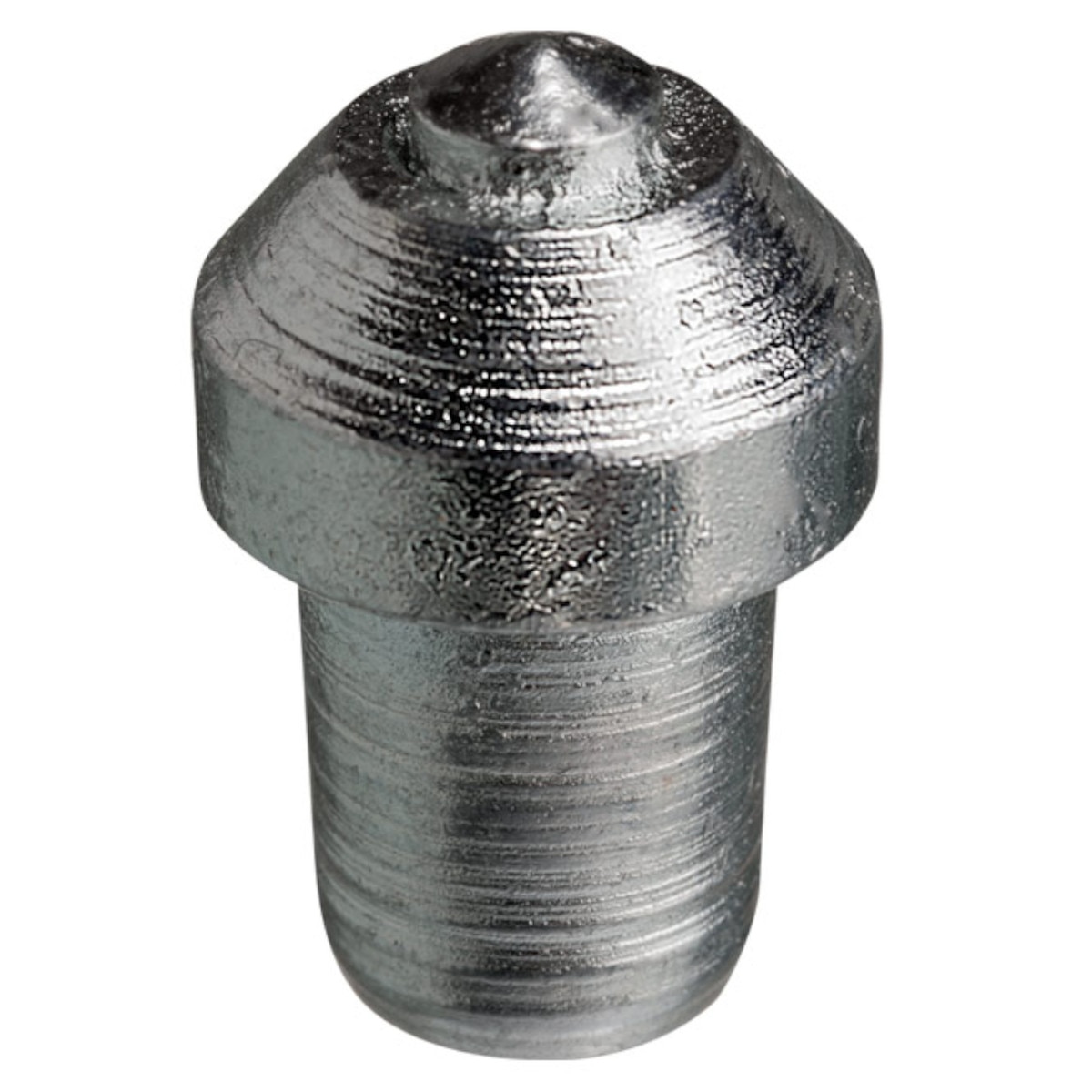

MUSTAD STUD DRIVE IN P11 S 3/8"

Mustad Drive In Studs
With Mustad's carbide tip studs, you'll see superior winter traction on ice, snow, mud and blacktop without time-consuming welds. They last so long you can often reuse them on resets. Just punch the stud back out and you're ready to put it back in another shoe!
STEP 1 DRILL: Select the correct drill bit size for the stud size and drill a hole in the shoe.
STEP 2 DRIVE: Place the stud in the hole and drive with a soft face hammer. (Do not use a hard face hammer as chipping may occur!) Do not drive it all the way to the other side of the shoe or until the shoulder touches the bottom side of the shoe.

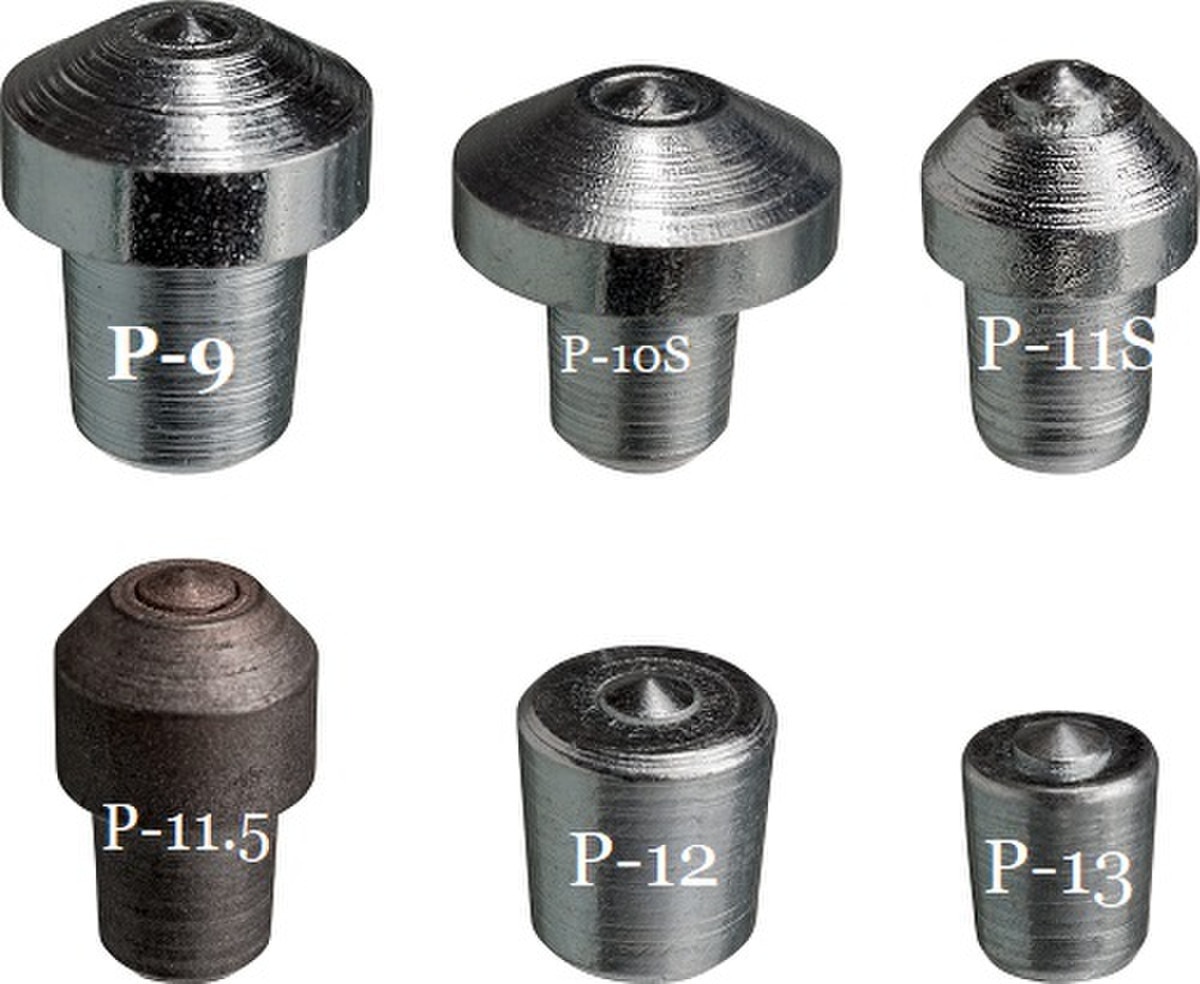

P-9: 14mm head diameter, 7.5mm height above shoe, 23/64" drill bit, 50 pieces.
P-10 S: 14mm head diameter, 6.5mm height above shoe, 17/64" drill bit, 50 pieces.
P-11 S: 10mm head diameter, 7.5mm height above shoe, 17/64" drill bit, 50 pieces.
P-11.5: 10mm head diameter, 8.5mm height above shoe, 17/64" drill bit, 50 pieces.
P-12: 10mm head diameter, 23/64" drill bit, 50 pieces.
P-13 S: 8mm head diameter, 17/64" drill bit, 50 pieces.
